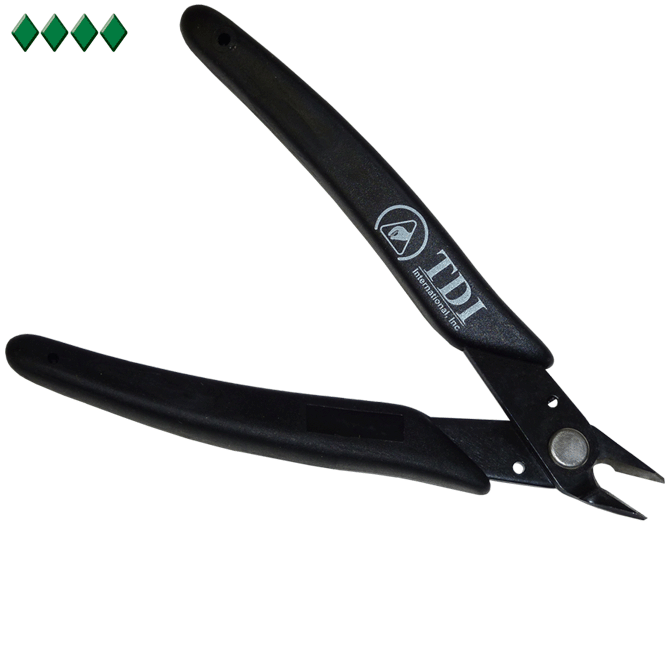

#TDI-170IIDS Ergonomic Taper Micro Shears


Short handle, ultra slim profile ergonomic micro shears.
Cuts soft wire up to 1.0mm / .040″ / 18 AWG
Overall Length 5.11″
Shear cutting edges – 56-58RC / Static dissipative ergonomic handles 108-1010 Ohms/sq
A: 0.35″
B: 0.55″
C: 0.74″
D: 0.08″

ESD Safe Micro-Shears

TDI’s Micro-Shear cutters utilize a patented blade by-pass shear cutting action which slices cleanly through metal wire.  Shear cutting greatly reduces shock delivered to components and requires minimal effort, increasing operator comfort.  By-pass shear cutting design eliminates edge-to-edge contact extending the life of the tool.  Shear cut design dissipates very little of the cutting force into the component or solder joint.  Ideal for wire and lead cutting in electronics assembly applications.

Standard Features:

  • Ergonomic Light Weight
  • Glare Eliminating Finish
  • Ergonomic Return Spring for Increased Operator Comfort
  • Ergonomic Non-Slip Handle Surface
  • ESD Safe Static Dissipative Handles (108-1010 Ohm/sq.)
