VacuPik® Portable Operating Instructions
Parts to be handled must be flat and dry.

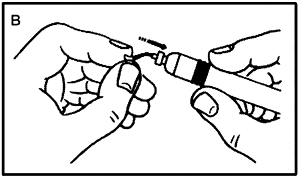

Press to insert the needle on the barrel.

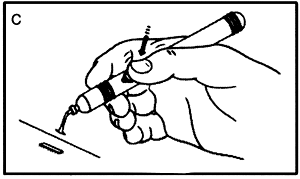

Correct handling: press button.

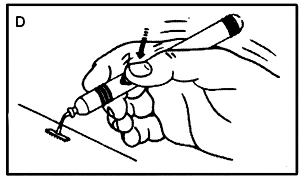

Touch the component gently while keeping the button pressed.

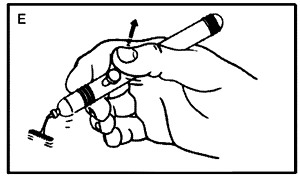

Release the button keeping contact. Component will stay in touch.

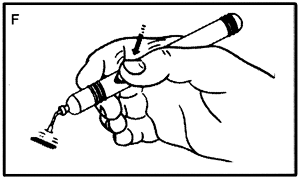

Press again to release the component.

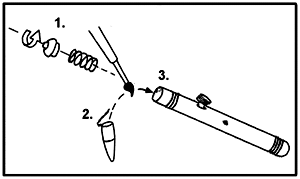

LUBRICANT – Use only in case of nonfluent pressure of the button.
- Screw out nozzle and remove spring.
- Dip a swab into the lubricant.
- Lubricate inside accurately.
