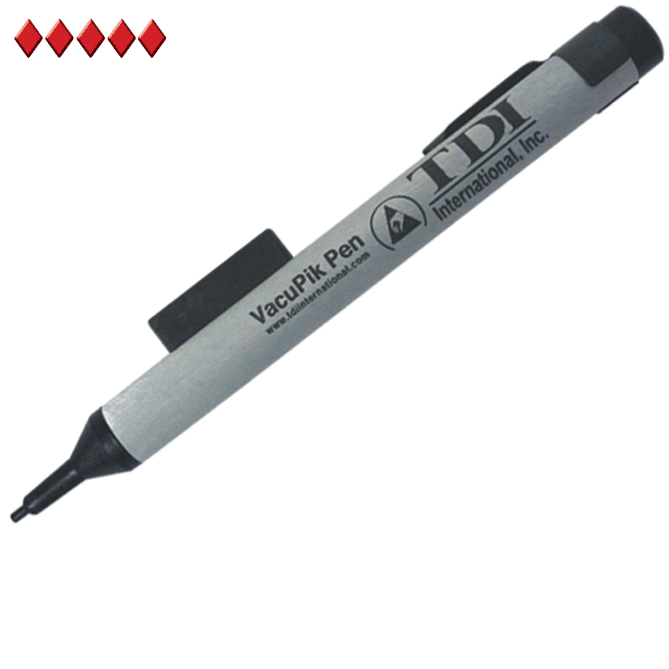

VacuPik® ESD Portable Vacuum Pens – Handle Only

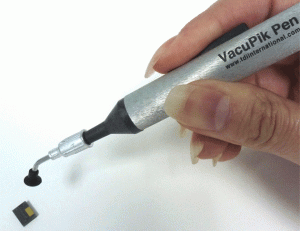

Portable vacuum pens are designed for safe pickup of electronic components, flat parts and substrates during assembly, test, circuit board repair and rework processes. These portable pick up tools utilize a powerful internal piston that allows safely grabbing, lifting and placing parts with finger activated push-buttons.
A complete line of tips designed for any size SMD component allows the operator to always have the right tool in hand.
Portable Vacuum Pens Standard Features Include:
- ESD Safe-Handle to Tip Resistance 108-1011 Ohms
- Self-Contained Vacuum Source-No Batteries or Hoses Required
- Silver Aluminum Body with a Pocket Clip
- Convenient Rear Storage Compartment for Extra Cups/Probes
- Easy Push-Button Operation
- Static Dissipative Non-Marking Nitrile Rubber Vacuum Cups
- Bent or Straight Needles.
- Cups can be Mounted on Probes or Directly onto the Tool
- Clean Cups with Isopropyl Alcohol or Water
- Vacuum Cups only Required for Portable Pickup Tools
- All TDI Portable Vacuum Pens and Vacuum Pickup Tool Systems are for use with Dry Applications Only
More Information:
- Nitrile and Silicone Cup Material Data Sheet
- Vacuum Pen Operating Instructions
- ESD Glossary of Terms
Hg=Approximate inches of mercury (Hg) depending on elevation and atmospheric pressure.
Additional Vacuum Cups available: Static Dissipative Nitrile and Conductive Silicone.
Also see our line of Vacuum Pickup Systems for In-Line and Continuous Vacuum source! ESD and compact design allows these unit to take up less space on your work station.
