#TDI-CSF1777DS Small Taper Cutters, Semi Flush with ERGO-FIT® Handles

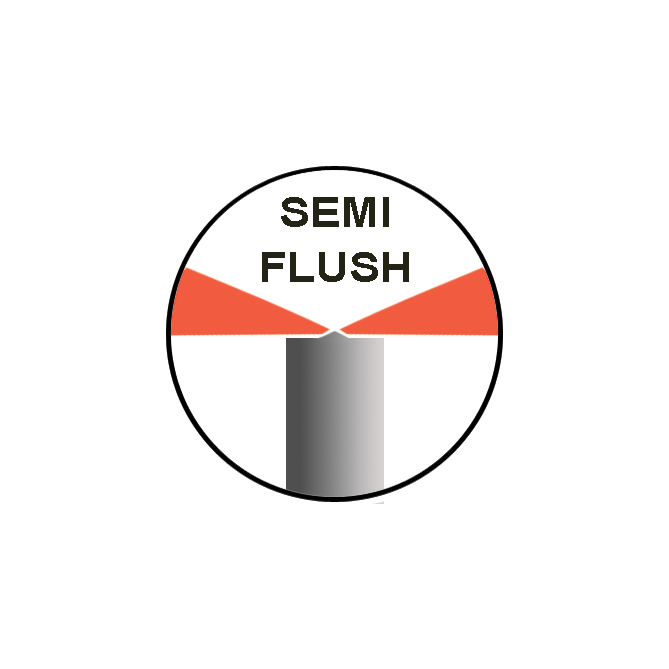

Cutting Edges: Semi Flush
Soft Wire Cutting Capacity: 32-17 AWG | .008-.047″ | 0.2-1.2 MM

Material: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.

ERGO-FIT Handle Length: 3 3/4″ (95mm)

SKU: #TDI-CSF1777DS Category:


High Precision Wire Cutters for soft wire and component lead cutting for electronics assembly, medical device assembly, circuit board repair and rework applications. Designed with light tension for long use without fatigue. The high precision ERGO-FIT® ergonomic cutters include ESD safe cushion grips with a comfortable surface contoured to achieve finger/hand support.

Standard Features:

  • High-Grade Alloy Steel
  • Induction Hardened Cutting Edges
  • 65 Rockwell Hardness
  • High Precision Lap Joint with Screw
  • Stainless Steel Dual Leaf Springs
  • Superior No-Scratch/Anti-Glare Finish
  • ERGO-FIT® Ergonomic Static Dissipative Cushion Grips
  • Ergonomic Contoured Cushion Grips
  • Surface Resistivity 108-109 Ohms/sq.

More Information:

Similar to These Part Numbers:

  • 8143
  • 758PL5340
  • 844PL143
  • 9243E
  • 595T
  • S143LI
  • TDI 511DS
