Wire Cutters for Electronics & Medical Device Assembly
High precision wire cutters for soft wire and component lead cutting in electronics assembly, medical device assembly, circuit board repair and rework applications.
Our cutters offer perfect geometry, utilizing CNC controlled mechanical processes. Pyrometer controlled inductive hardening gives these tools a 63-65 Rockwell Hardness [HRC] for precise and durable cutting edges.
Standard Features:
- Chrome Alloy Tool Steel
- High Precision Joint Design
- Supreme Cutting Performance
- Induction Hardened Cutting Edges
- Rockwell Hardness 63-65C
- Stainless Steel Dual Leaf Springs
- Matched Bearing Rings to Minimize Metal-to-Metal Contact and Friction.
- Ergonomic Non-Slip Handle Surface
- Static Dissipative 109-1011 Ohms/sq.
These cutters include oval, taper, and angled head styles, as well as tip cutters. Available in Semi-Flush, Flush and Full Flush.
Showing 1–12 of 16 results
-

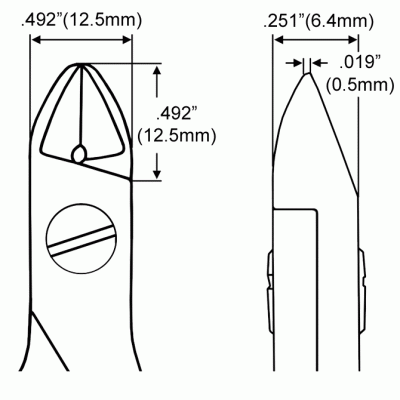

#TDI-CSF1511DS Large Oval Cutters, Semi Flush with ERGO-FIT® Handles
$56.20Cutting Edges: Semi Flush
Soft Wire Cutting Capacity: 29-14 AWG | .011-.062″ | 0.3-1.6 MMMaterial: High Quality Ball Bearing Steel
Rockwell Hardness: 63
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-

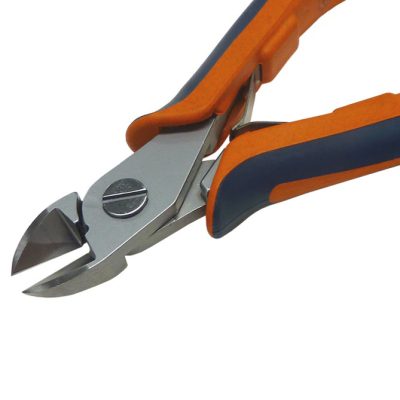

#TDI-CF1511DS Large Oval Cutters, Flush with ERGO-FIT® Handles
$57.35Cutting Edges: Flush
Soft Wire Cutting Capacity: 32-14 AWG | .008-.062“ | 0.2-1.6 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-
#TDI-CSF1811DS Extra Large Oval Cutters, Semi Flush with ERGO-FIT® Handles
$58.45Cutting Edges: Semi Flush
Soft Wire Cutting Capacity: 26-12 AWG | .015-.078″ | 0.4-2.0 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-
#TDI-CF1811DS Extra Large Oval Cutters, Flush with ERGO-FIT® Handles
$59.60Cutting Edges: Flush
Soft Wire Cutting Capacity: 29-14 AWG | .011-.062“ | 0.3-1.6 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-

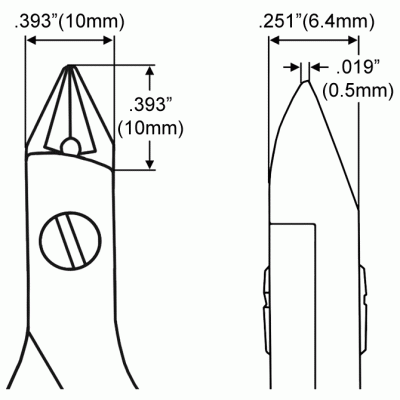

#TDI-CSF1777DS Small Taper Cutters, Semi Flush with ERGO-FIT® Handles
$53.90Cutting Edges: Semi Flush
Soft Wire Cutting Capacity: 32-17 AWG | .008-.047″ | 0.2-1.2 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-

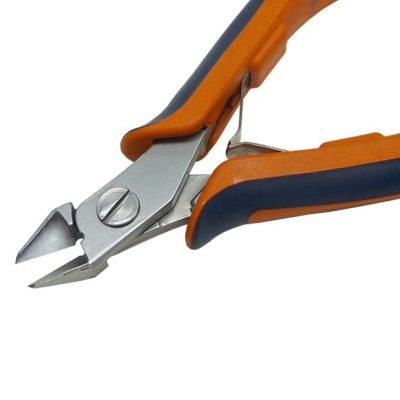

#TDI-CF1777DS Small Taper Cutters, Flush with ERGO-FIT® Handles
$55.05Cutting Edges: Flush
Soft Wire Cutting Capacity: 38-18 AWG | .004-.047″ | 0.1-1.2 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-

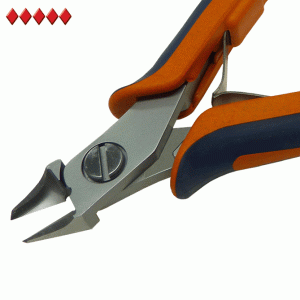

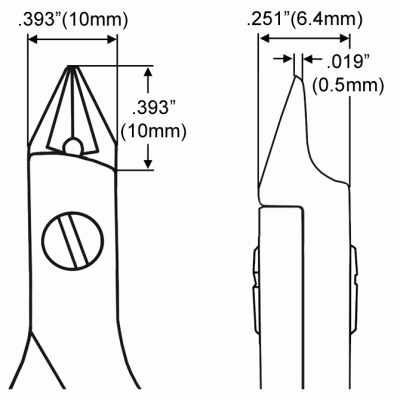

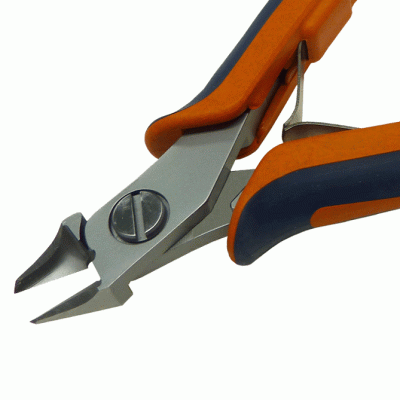

#TDI-CFF1776DS Small Taper Relief Cutters, Full Flush with ERGO-FIT® Handles
$60.75Cutting Edges: Full Flush
Fine Copper Wire Cutters
Soft Wire Cutting Capacity: 38-20 AWG | .004-.031″ | 0.1-0.8 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-

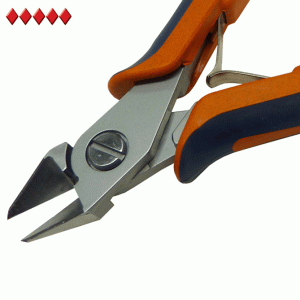

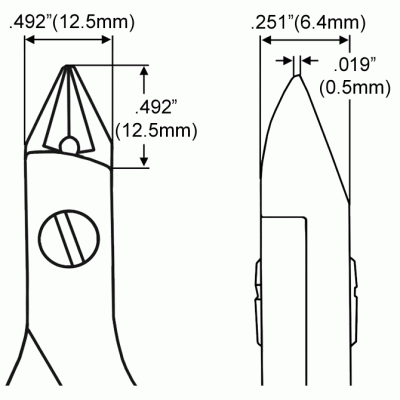

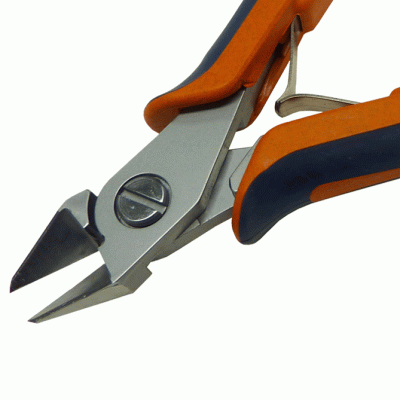

#TDI-CFF1595DS Large Taper Cutters, Full Flush with ERGO-FIT® Handles
$58.45Cutting Edges: Full Flush Cutters
Soft Wire Cutting Capacity: 32-17 AWG | .008-.047″ | 0.2-1.2 MMMaterial: High-Quality Ball Bearing Steel
Rockwell Hardness: 65
Surface Resistivity: 108-109 Ohms/sq.ERGO-FIT Handle Length: 3 3/4″ (95mm)
-
#TDI 895F-DS Large Oval Cutters Flush
$33.75–BEST VALUE!–
Cutting Capacity:
Flush: 15 AWG | .059″ | 1.5 MMERGO-FIT Handle Length: 3 3/4″ (95mm)
Overall Length: 4-1/2″ (115mm) -
#TDI 3100S-DS Extra Large Oval Cutters Semi Flush
$37.50–BEST VALUE!–
Cutting Capacity:
Semi-Flush: 13 AWG | .070″ | 1.8 MMERGO-FIT Handle Length: 3 3/4″ (95mm)
Overall Length: 5-1/4″ (130mm) -
#TDI-9200DS-LR Short Handle Taper Micro Shears w/Lead Retainer
$23.55Short handle taper head micro shears with factory installed lead retainer.Cuts soft wire up to 1.6mm / .064″ / 14 AWG
Overall Length 4.9″
Shear cutting edges – 56-58RC / Static dissipative ergonomic handles 108-1010 Ohms/sq.A: 0.35″
B: 0.48″
C: 0.84″
D: 0.12″ -
#TDI-170IIDS Ergonomic Taper Micro Shears
$9.25Short handle, ultra slim profile ergonomic micro shears.Cuts soft wire up to 1.0mm / .040″ / 18 AWG
Overall Length 5.11″
Shear cutting edges – 56-58RC / Static dissipative ergonomic handles 108-1010 Ohms/sqA: 0.35″
B: 0.55″
C: 0.74″
D: 0.08″
