Stainless Steel Desiccators

STAINLESS STEEL DESICCATOR CABINETS

TDI'S Stainless steel desiccator cabinets provide clean, high-density storage for both cleanroom and assembly applications and are designed for maximum weight capacity and long-term durability.  Available in a popular Table Top Model, 2 or 3 Stacked Modules in a specially designed stand or Multi-Chamber models.

Multi-Chamber stainless steel desiccators are constructed with Ultra Nitro-Flow notched compartment walls and floors, which achieve a single pressure throughout the desiccator.  This eliminates the need for expensive outlet valves for each compartment, required in typical competitor desiccators.

This unique design also allows for a single Nitro-Save® Humidity Control Monitor sensor system for Multi Chamber cabinets.

Stainless Steel Desiccator Standard Options:
  • Nitro-Save® Humidity Control Monitor - Accurately Controls Pre-SEt RH% and Reduces Nitrogen (N2) Usage
  • Digital Hygrometer
  • Flowmeter and Continuous Bleeder Valve to Nitrogen Purge Desiccator
  • Adjustable Perforated Stainless Steel Shelves and Heavy-Duty Shelf Racks
  • Camlocks, Heavy-Duty Stand with Lockable Casters or Levelers

Single Chamber Table Top Stainless Steel Desiccator

Standard Features:

  • Durable Stainless Steel Construction
  • Tempered Glass or Static Dissipative Acrylic Doors
    with Heavy Duty Stainless Steel Desiccator Door Frames
  • Cabinet Wire Grounding for ESD Protection
  • Stainless Steel Backwall
  • Continuous Door Hinge for Maximum Support
  • Spring Loaded Latches for Air-Tight Door Seals
  • Closed Cell Neoprene Door Gaskets
  • 1 Year Structural and Mechanical Warranty
  • Continuous In-Line Nitrogen (N2) Required

Single Chamber Stainless Steel Desiccator Cabinet

1 Chamber Table Top Desiccator w/Nitro-Save®

24"w x 22"D 16"H

2 & 3 Stack Stainless Steel Desiccator Modules

2 or 3 Stainless Steel Desiccators stacked in a specially designed stand with lockable casters or levellers.

Standard Features:

  • Durable Stainless Steel Construction
  • Tempered Glass or Static Dissipative Acrylic Doors
    with Heavy Duty Stainless Steel Desiccator Door Frames
  • Cabinet Wire Grounding for ESD Protection
  • Stainless Steel Back Walls
  • Continuous Door Hinge for Maximum Support
  • Spring Loaded Latches for Air-Tight Door Seals
  • Closed Cell Neoprene Door Gaskets
  • Heavy-Duty Painted Steel Stand
  • 1 Year Structural and Mechanical Warranty
  • Continuous In-Line Nitrogen (N2) Required

2 Stack Stainless Steel Desiccator

2 Stack Module

24"W x 22"D x 24"H
Double Stacked Shelf Racks
for Maximum Shelf Adjustability

3 Stack Stainless Steel Desiccator

3 Stack Module

24"W x 22"D x 16"H

Multi-Chamber Stainless Steel Desiccator

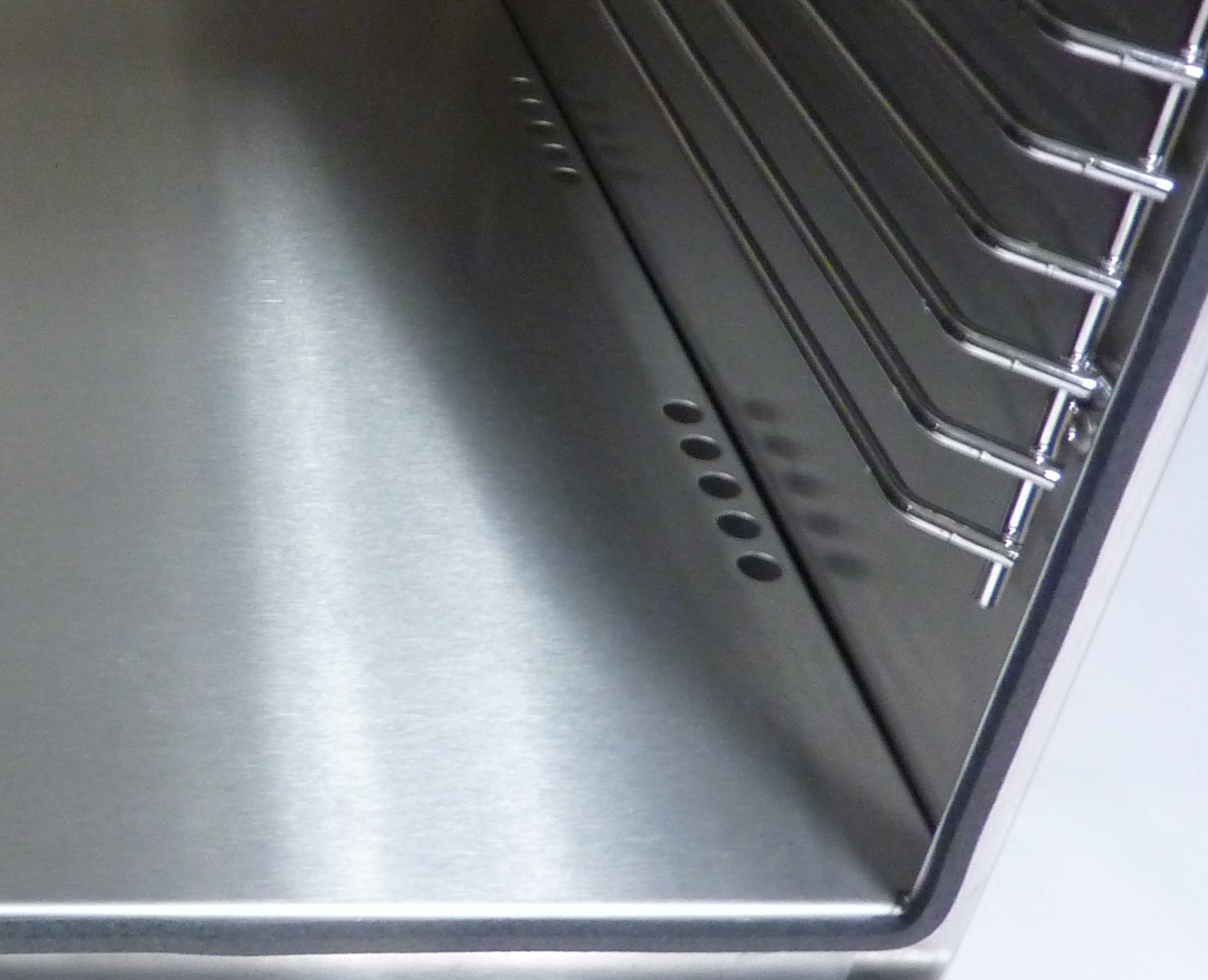

Multi-Chamber Stainless Steel Desiccator Cabinets are constructed with Ultra Nitro-Flow compartment flow-throughs, which achieve a single pressure and atmosphere condition throughout the desiccator.

This unique design allows maximum gas flow in both the vertical and horizontal directions and reduces higher moisture humidity conditions between compartments. This design allows for a single automatic bleeder valve per cabinet.

This eliminates the need for expensive outlet valves for each compartment, required in typical competitor desiccators. The bleeder valve is located in the bottom of the lowest compartment and serves as an efficient outlet drain for the heavier high moisture atmosphere within the desiccator.  This design also allows for a single Nitro-Save® sensor system for multiple compartment cabinets.

Standard Features:

  • Durable Stainless Steel Construction
  • Multi-Chamber Stainless Steel Desiccators include a Plenum Chamber
  • Tempered Glass or Static Dissipative Acrylic Doors
  • Heavy-Duty Stainless Steel Door Frames
  • Ultra Nitro-Flow Compartment Cut-Outs
  • Wire Grounding for ESD Protection
  • Stainless Steel Back Walls
  • Adjustable Perforated Stainless Steel Shelves
    • Double Stacked Racks in each Compartment for Maximum Shelf Adjustability
  • Continuous Door Hinge for Maximum Support
  • Spring Loaded Latches for Air-Tight Door Seals
  • Closed Cell Neoprene Door Gaskets
  • 1 Year Structural and Mechanical Warranty
  • Continuous In-Line Nitrogen (N2) or Clean Dry Air (CDA) Required

Options include shelves, flowmeter, bleeder valve, Nitro-Save® or Hygrometer, Grounding.

2448SS - 2 Door 24"W x 23"D x 48"H

2 Chamber w/Stand

Overall: 24"W x 23"D x 48"H
Compartment Size:
22"W x 20"D x 22"H

3 Chamber w/Mounted Casters

Overall: 24"W x 23"D x 72"H
Compartment Size:
22"W x 20"D x 22"H

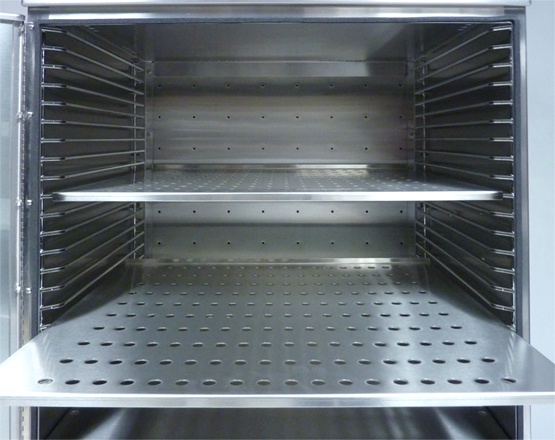

Plenum Chamber

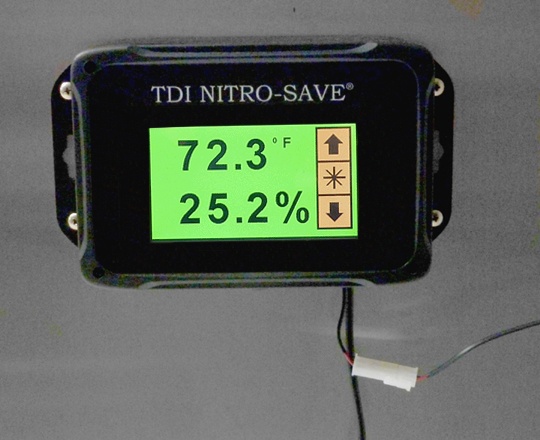

Nitro-Save® Humidity Control Monitor

Perforated Shelves
