Diamond Scribes, High Precision Micro/Mini ScribersDiamond Scribes

TDI’s Diamond Scribes are high precision and designed for optimum scribing or marking of thin film circuits, wafer marking, microcircuits, small circuit boards and to clean or trim circuits in microelectronic applications.

“PVH” diamond scribes line includes a gold anodized, lightweight aluminum pin vise handle with a knurled grip for easy non-slip handling.  This pin vise features an anodized steel holding collet, adapter and drawbar for interchanging diamond tips.

“HSD” diamond scribes are designed for scribing or marking super hard surfaces including silicon and alumina ceramics in electronics assembly and rework.  These scribes offer a .060″ diameter diamond permanently mounted on a .300″ stainless steel shank and available with bent or straight tips.  Handles are non-rolling hexagon shaped.

“MMD” micro mini diamond scribes have permanently mounted tips with .020″ diameter straight or bent tips.  Non-rolling, lightweight gold anodized handle.

diamonds-grades copy

Request a Quote for Volume Quantity Discounts!

Showing all 7 results

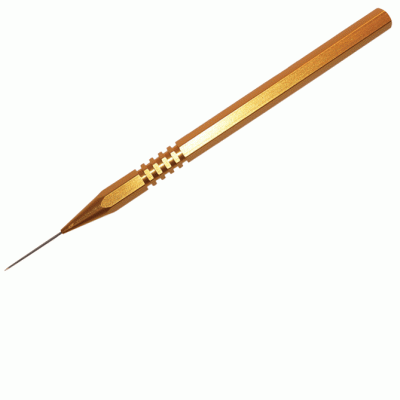

  • #TDI MMDS020S High Precision Straight Micro Mini Diamond Scriber

    $29.25

    Diamond Tip Scribes Standard Features:

    • Natural tips with 60° angle.
    • Available in straight or bent styles
    • Reduced shank size of .020″
    • Diamond mounting .032″ diameter / .005″ tip radius.
    • Finger grip grooves for easy handling.
    • .250″ diameter anodized aluminum handle (non-magnetic).
    • Handle is non-rolling hexagon shape, to prevent the tool from rolling off your workstation.
    • Overall length 4.75″
    • For scribing or marking.

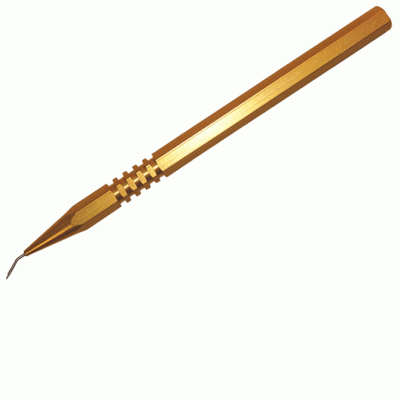

  • #TDI MMDS020B High Precision Bent Micro Mini Diamond Tip Scribe

    $31.15

    Diamond Tip Scribe Standard Features:

    • Natural diamond tips with 60° angle.
    • Available in straight or bent diamond scribe tips.
    • Reduced shank size of .020″
    • Diamond mounting .032″ diameter / .005″ diamond tip radius.
    • Finger grip grooves for easy handling.
    • .250″ diameter anodized aluminum handle (non-magnetic).
    • Handle is non-rolling hexagon shape.
    • Overall length 4.75″
    • For scribing or marking.

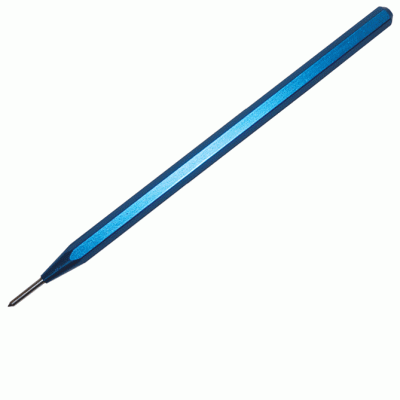

  • #TDI HSDS060S Straight .060″ Diamond Scribe

    $25.50

    Standard Features:

    • Natural Diamond Tips with 60° Angle
    • Diamond Tip is Mounted to a .06″ Diameter by .30″ Long Stainless Steel Shank
    • Overall Length – 4.3″
    • Bent or Straight Permanent Tips
    • Non-Rolling Hexagon Shaped Blue Handles

    For scribing or marking of hard and super hard surfaces including silicon, fired aluminum and ceramics in electronics assembly and rework.

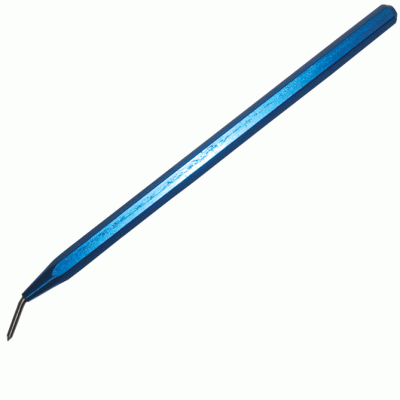

  • #TDI HSDS060B Bent .060″ Diamond Scribe

    $25.90

    Standard Features:

    • Natural Diamond Tips with 60° Angle
    • Diamond Tip is Mounted to a .06″ Diameter by .30″ Long Stainless Steel Shank
    • Overall Length – 4.3″
    • Bent or Straight Permanent Tips
    • Non-Rolling Hexagon Shaped Blue Handles

    For scribing or marking of hard and super hard surfaces including silicon, fired aluminum and ceramics in electronics assembly and rework.

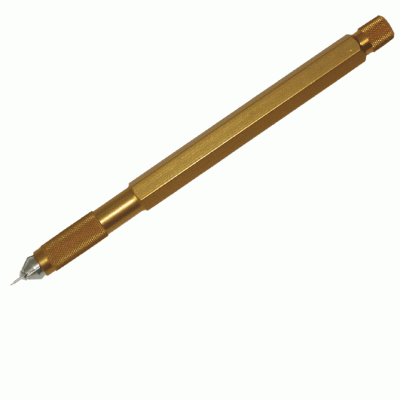

  • #TDI PVH100 Pin Vise Tool Handle

    $34.50

    Anodized steel tool holding collet chuck, collet adapter and draw bar – non magnetic.  Collet adapter holds tips in collet chuck – opening is .070″ diameter.

    Shown with tip (sold separately).

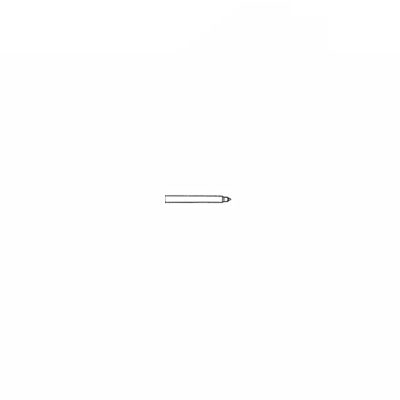

  • #TDI PVT020S Pin Vise Diamond Scribe Tip Straight .020″

    $16.50
    Thicker Straight Diamond Scribe Tip for Pin Vise Handle
    Interchangeable
    .020″ Diameter x .060″ Tip Length
    Natural diamond tip with 60° angle

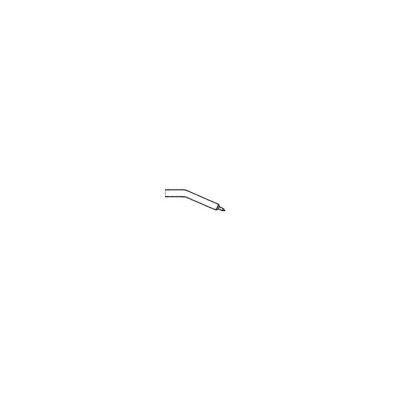

  • #TDI PVT010B Pin Vise Diamond Scribe Tip Bent .010″

    $31.50
    Bent Diamond Scribe Tip for Pin Vise Handle
    Interchangeable
    .010″ Diameter x .060″ Tip Length
    Natural diamond tip with 60° angle
