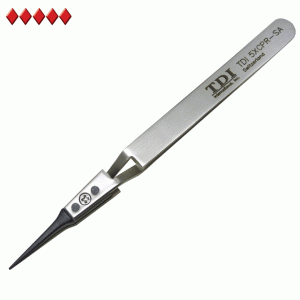

High Precision Conductive “CP” PEEK Tip Tweezers
“CP” conductive PEEK tweezers provide the features of a durable tip material with self-aligning replacement tips and anti-magnetic handles. These fiber tip tweezer tips are perfectly balanced offering fine tip symmetry and alignment for precision handling applications. These PEEK tweezers offer a higher 260°C temperature tolerance and are compatible with a wide range of acids and solvents.
The “CP” tweezers are popular in standard ESD and general electronics assembly and lab applications. These “CP” tweezers are excellent for handling sensitive ceramic and glass parts where nonmetallic scratching is critical.
Standard Features:
- Conductive “CP” PEEK with Carbon Fiber Tips
- Conductive – Surface Resistivity 103-105 Ohms/sq.
- High Heat Capability – 260°C (Continuous Use) – 300°C (Short Time)
- Self Aligning Replacement Precision Tips
- Stainless Anti-Magnetic Handles – “SA”
- High Precision Fine Tip Symmetry and Balance
- Acetone / IPA resistant
- Reverse Action Handles Available upon Request
- Lead free
More Information:
- Replacement Tips
- Self Aligning Replacement Tips Procedure
- “CP” Material Data Sheet
- “CP” Chemical Compatibility Chart
Showing all 7 results
-

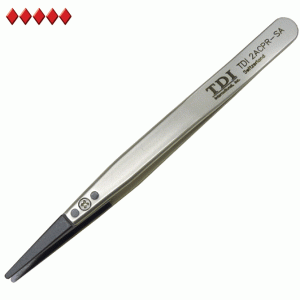

#TDI 2ACPR-SA High Precision Swiss Conductive “CP” PEEK Tweezers
$33.752A Style Flat Duckbill Tips
Conductive “CP” PEEK Tips, Stainless Anti-Magnetic HandlesDimensions:
Overall Length (A): 5″
Tip Width (B): .071″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″ -

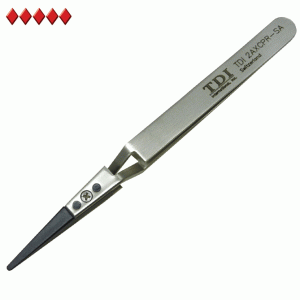

#TDI 2AXCPR-SA High Precision Swiss Conductive “CP” PEEK Tweezers
$37.95Reverse Action “2A” Style with Flat Duckbill Tips
Conductive “CP” PEEK, Stainless Anti-MagneticOverall Length (A): 5″
Tip Width (B): .071″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″ -

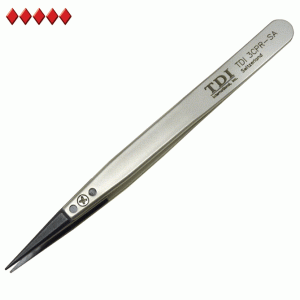

#TDI 3CPR-SA High Precision Swiss Conductive “CP” PEEK Tweezers
$33.753 Style with Very Sharp Pointed Tips
Conductive “CP” PEEK Tips, Stainless Anti-Magnetic HandlesDimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .039″
Replaceable Tip Length (L): 1.02″ -

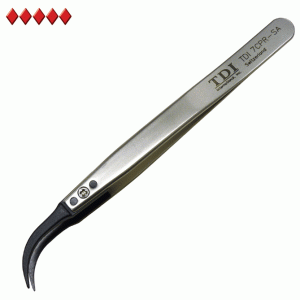

#TDI 7CPR-SA High Precision Swiss Conductive “CP” PEEK Tweezers
$33.757 Style Curved Very Fine Tips
Conductive “CP” PEEK Tips, Stainless Anti-Magnetic HandlesDimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″ -

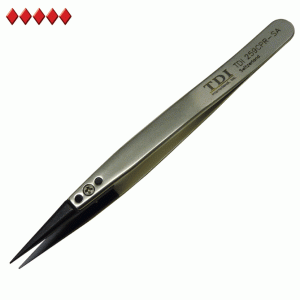

#TDI 259CPR-SA High Precision Swiss Conductive “CP” PEEK Tweezers
$33.75259 Style Strong Pointed Tips
Conductive “CP” PEEK Tips, Stainless Anti-Magnetic HandlesDimensions:
Overall Length (A): 5″
Tip Width (B): .027″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.02″ -

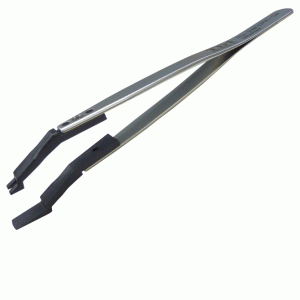

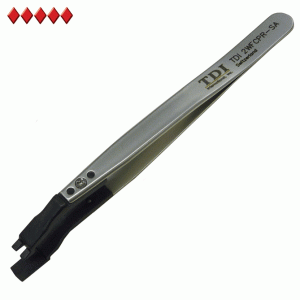

#TDI 2WFCPR-SA High Precision Swiss PEEK 2″ Wafer Tweezers with Replaceable Tips
$36.55Used for handling 2″ diameter wafers/substrates Fine round strong tips. ESD safe conductive.
Conductive PEEK tips, stainless anti-magnetic handles. Lead Free. -

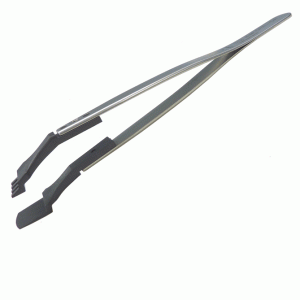

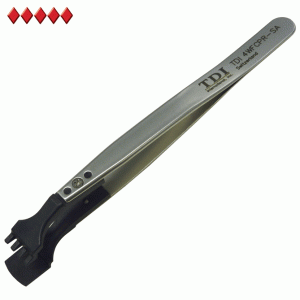

#TDI 4WFCPR-SA High Precision Swiss PEEK 4″ Wafer Tweezers with Replaceable Tips
$36.55Used for handling 4″ diameter wafers/substrates Flat round tips. ESD safe conductive.
Conductive PEEK tips, stainless anti-magnetic handles. Lead Free
