TDI High Precision Static Dissipative “TD” ESD Safe Polymer Tip Tweezers
TDI pioneered the “TD”® Static Dissipative Polymer tweezers for most critical ESD applications with excellent transient current discharge performance that meets < 40V ESD threshold Class 0 CDM Compliant.
TDI “TD”® Static Dissipative Polymer Tweezers provide the features of a durable polymer tip material with self-aligning replacement tips and anti-magnetic handles. These fiber tip tweezers are perfectly balanced offering fine tip symmetry and alignment for precision handling applications.
Standard Features:
- ESD Safe Tweezer Tips – Static Dissipative Polymer “TD”®
- < 40V ESD threshold Class 0 CDM Compliant
- Excellent Transient Current Discharge
- Surface Resistivity 106 to 108 Ohm/sq. at 40V and 100V Threshold
- Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
- Self-Aligning Replacement Tips
- Temperature Resistant 200°C (Continuous Use) – 230°C (Short Time)
- High Precision Fine Tip Symmetry & Balance
- Stainless Anti-Magnetic Handles “SA”
- Silicone and Chloride Free Polymer
- Solvent / Acid Resistant
- Lead free
More Information:
- Replacement Tips
- Self Aligning Replacement Tips Procedure
- Test Procedure: Quality Assurance Class 0 CDM
- “TD”® Material Data Sheet
- “TD”® Material Chemical Compatibility Chart
Showing all 7 results
-

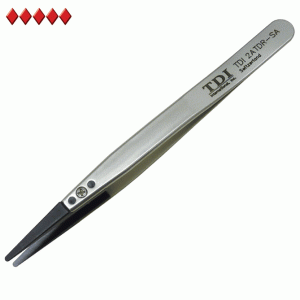

#TDI 2ATDR-SA High Precision Static Dissipative “TD” Tweezers
$34.302A Style Wide Flat Duckbill Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD ThresholdDimensions:
Overall Length (A): 5″
Tip Width (B): .080″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.02″
-

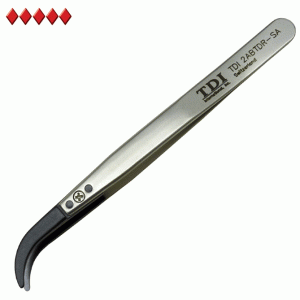

#TDI 2ABTDR-SA High Precision Static Dissipative “TD” Tweezers
$34.302AB Style Tweezers Curved Wide, Flat Duckbill Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold.Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″ -

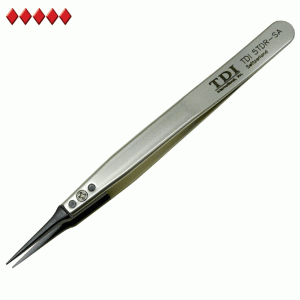

#TDI 5TDR-SA High Precision Static Dissipative “TD” Tweezers
$34.305 Style Very Fine Tips Tapered for Maximum Visibility
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD ThresholdDimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″
-

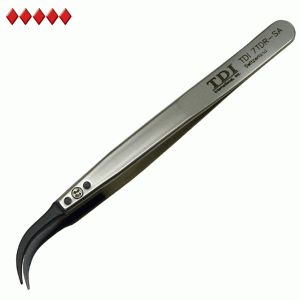

#TDI 7TDR-SA High Precision Static Dissipative “TD” Tweezers
$34.307 Style Curved Very Fine Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD ThresholdDimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
-
#TDI 242TDR-SA High Precision Static Dissipative “TD” Tweezers
$34.30242 Style Tweezers – Narrow Flat Duckbill Tips
(Slimmer “2A” Style Tweezers)Class 0 CDM Compliant. Most Critical ESD Applications < 40V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Overall Length (A): 5″
Tip Width (B): .069″
Tip Thickness (C): .028″
Replaceable Tip Length (L): 1.02″
-

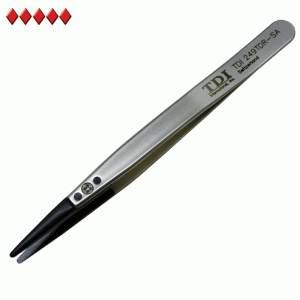

#TDI 249TDR-SA High Precision Static Dissipative “TD” Tweezers
$34.30249 Style Tweezers – Strong Thick Tips
Class 0 CDM Compliant. Most Critical ESD Applications < 40V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Overall Length (A): 5-1/8″
Tip Width (B): .090″
Tip Thickness (C): .045″
Replaceable Tip Length (L): 1.02″ -

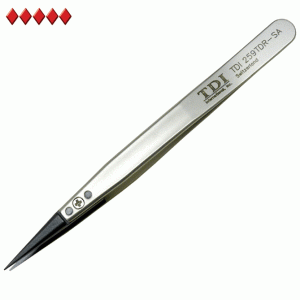

#TDI 259TDR-SA High Precision Static Dissipative “TD” Tweezers
$34.30259 Style Strong Pointed Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD ThresholdDimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .039″
Replaceable Tip Length (L): 1.02″
