Wafer Tweezers
Wafer Tweezers
TDI offers the largest selection of high precision, and precision wafer handling tweezers with tip shapes and sizes 2”-8” diameters. These tweezers are specially designed to handle silicon/ gallium arsenide wafers and ceramic/glass substrates.
These wafer tweezers are made of anti-magnetic stainless steel material with perfectly balanced symmetry and anti-glare polished tip edges for accurate positioning of wafers or substrates to avoid breaking thin materials. To eliminate scratching, Teflon coating is also available upon request.
TDI “CP” Conductive PEEK Wafer Tweezers provide the features of a durable tip material with self-aligning replacement tips and anti-magnetic handles. These fiber tip tweezer tips are perfectly balanced offering fine tip symmetry and alignment for precision handling applications. These PEEK tweezers offer a higher 260°C temperature tolerance and are compatible with a wide range of acid and solvents.
Request a Quote for Volume Quantity Discounts!
Showing 1–12 of 14 results
-
#TDI 2WFCPR-SA High Precision PEEK 2″ Wafer Tweezers with Replaceable Tips
$41.10Quick ViewUsed for handling 2″ diameter wafers/substrates Fine round strong tips. ESD safe conductive.
Conductive PEEK tips, stainless anti-magnetic handles. Lead Free.

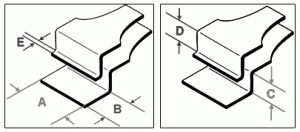

A: .258″
B: .419″
C: .060″
D: .140″
E: .180″ESD safe conductive tips 103-105 Ohms/sq.
Temperature Resistance 260°C (Continuous Use) – 300°C
-
#TDI 4WFCPR-SA High Precision PEEK 4″ Wafer Tweezers with Replaceable Tips
$41.10Quick ViewUsed for handling 4″ diameter wafers/substrates Flat round tips. ESD safe conductive.
Conductive PEEK tips, stainless anti-magnetic handles. Lead Free
A: .480″
B: .419″
C: .060″
D: .140″
E: .180″- High precision fine tip symmetry and balance.
- ESD safe conductive tips 103-105 Ohms/sq.
- Temperature Resistance 260°C (Continuous Use) – 300°C
-

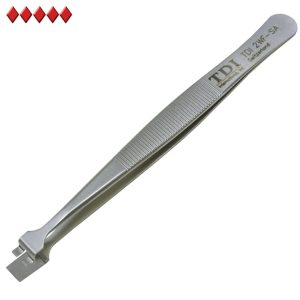

#TDI 2WFG-SA High Precision 2″ Wafer Handling Tweezers
$32.55Quick ViewUsed for handling 2″ diameter wafers/substrates Top fingers, stepped bottom paddle with grid.
A: .256″
B: .354″
C: .157″
E: .098″
-

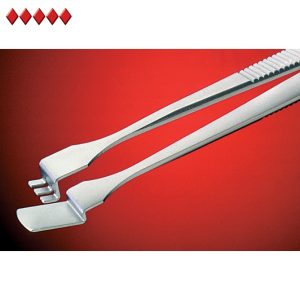

#TDI-3WF-SA-I Precision 3″ Wafer Handling Tweezers
$24.55Quick ViewUsed for handling 3″ diameter wafers/substrates. Top fingers, stepped bottom paddle.
A: .384″
B: .315″
C: .180″
D: .190″
E: .118″ -
#TDI 3WFG-SA High Precision 3″ Wafer Handling Tweezers
$32.55Quick ViewUsed for handling 3″ diameter wafers / substrates. Top fingers, stepped bottom paddle with grid.
A: .374″
B: .397″
C: .098″
D: .157″
E: .098″ -

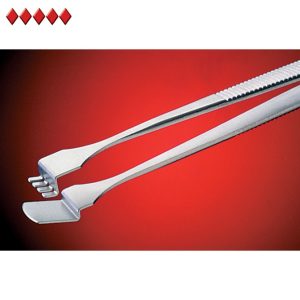

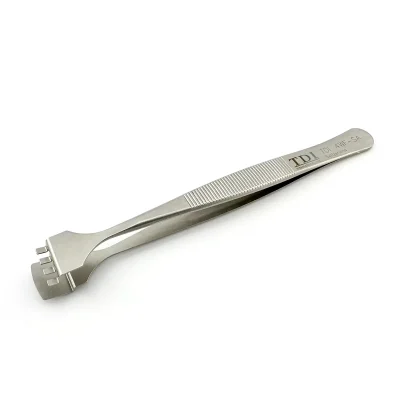

#TDI-4WF-SA-I Precision 4″ Wafer Handling Tweezers
$24.55Quick View$29.10 when you order 12+
Used for handling 4″ diameter wafers / substrates. Top fingers and stepped bottom paddle.
A: .493″
B: .335″
C: .180″
D: .190″
E: .118″ -
#TDI-4WL-SA-I Precision 4″ Wafer Handling Tweezers
$24.55Quick View$29.10 when you order 12+
Used for handling 4″ diameter wafers/substrates. Top fingers and stepped bottom paddle.
A: .472″
B: .295″
C: .118″
D: .157″
E: .098″ -

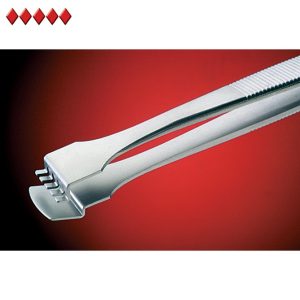

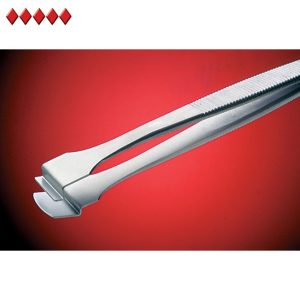

#TDI-5WL-SA-I Precision 5″ Wafer Handling Tweezers
$24.55Quick View$29.10 when you order 12+
Used for handling 4″ diameter wafers/substrates. Top fingers and stepped bottom paddle.
A: .630″
B: .335″
C: .098″
D: .157″
E: .098″ -

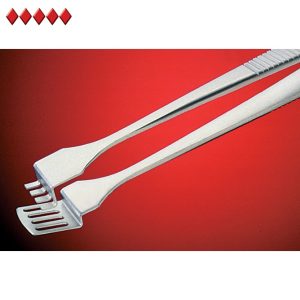

#TDI 4WFG-SA High Precision 4″ Wafer Handling Tweezers
$32.55Quick ViewUsed for handling 4″ diameter wafers/substrates. Top fingers, stepped bottom paddle with a grid.
A: .472″
B: .354″
C: .098″
D: .157″
E: .098″ -

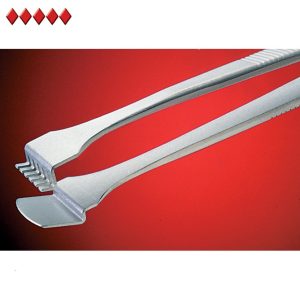

#TDI-6WF-SA-I Precision 6″ Wafer Handling Tweezers
$24.55Quick ViewUsed for handling 6″ diameter wafers/substrates Top fingers, stepped bottom paddle.
A: .795″
B: .335″
C: .180″
D: .190″
E: .118″ -
#TDI-6WFF-SA-I Precision 6″ Wafer Handling Tweezers
$24.55Quick View“46WF” Style used for handling 6″ diameter wafers/substrates Top fingers and flat bottom paddle.
A: .795″
B: .350″
D: .190″
E: .118″ -

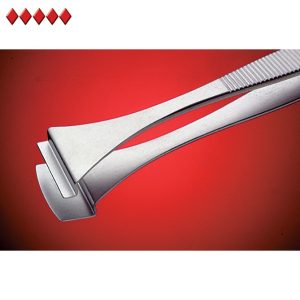

#TDI-6WL-SA-I Precision 6″ Wafer Handling Tweezers
$24.55Quick ViewUsed for handling 6″ wafers/substrates Top lip and stepped bottom paddle.
A: .795″
B: .335″
C: .180″
D: .190″
