#TDI 2ACPR-SA High Precision Conductive “CP” PEEK Tweezers

Replaceable Tip Tweezers

High Precision Replaceable Tip Tweezers & Replacement Tips

Choose from ESD safe static dissipative or conductive replaceable tips.  Save money buy replacing tips versus replacing the entire tweezer.  Handles are made of stainless anti-magnetic “SA”.

TDI’s replaceable tip tweezers are available in many different styles and with several different tip materials including ceramic, polymer, PEEK and carbofib.  Different ESD properties include conductive, static dissipative and insulative.

Choose a category below to see styles available, as well as the corresponding replacement tips.

  • Class 0 - Static Dissipative Polymer & Ceramic

    Class 0 - Static Dissipative Polymer & Ceramic (19)

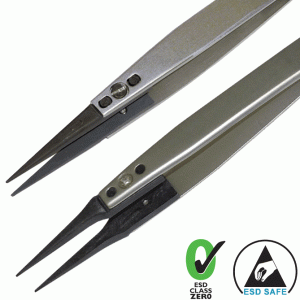

    Class 0 CDM Compliant Static Dissipative ESD Tweezers Most Critical ESD Applications

    TDI pioneered the static dissipative class 0 tweezers with replaceable tips ceramic tip tweezers with pcbfor most critical ESD applications with excellent transient current discharge performance that meets less than 40VESD threshold Class 0 CDM Compliance.
    "KD"® static dissipative ESD ceramic tweezers for high temperature applications.
    • Static Dissipative Zirconia Ceramic Tips – “KD”®
    • Surface Resistivity 106 to 108 Ohms/sq. at 50V and 100V Threshold
    • Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
    • Alignable Replacement Tips
    • Enhanced Break Strength and Surface Finish
    • Extreme High-Temperature Tip Resistance 1000°C
    • Solder, Chemical, Solvent & Acid Resistant

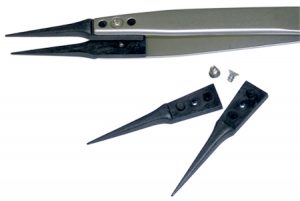

    "TD"® static dissipative ESD polymer tweezers for lower temperature applications.
    • ESD Safe Tweezer Tips – Static Dissipative Polymer “TD”®
    • Surface Resistivity 106 to 108 Ohm/sq. at 40V and 100V Threshold
    • Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
    • Self-Aligning Replacement Tips
    • Temperature Resistant 200°C (Continuous Use) – 230°C (Short Time)
    • Silicone and Chloride Free Polymer
    • Solvent / Acid Resistant
    History of Static Dissipative ESD Tweezers | ESD Glossary of Terms For more information please see:  DA Class 0 Definition for Manufacturing - Dangelmayer Associates, LLC.
  • Fiber Tip - Conductive CarboFib & PEEK

    Fiber Tip - Conductive CarboFib & PEEK (28)

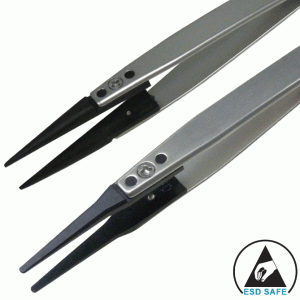

    ESD Safe Replaceable Fiber Tip Tweezers - Conductive

    TDI ESD safe replaceable fiber tip tweezers provide the features of durable tip materials with self-aligning replacement tips and anti-magnetic stainless steel handles.  Available in conductive "CF" carbofib and "CP" PEEK tweezers/tips. These fiber tip tweezer tips are perfectly balanced offering fine tip symmetry and alignment for precision handling applications.  The "CF" and "CP" tweezers are excellent for handling sensitive ceramic and glass parts where nonmetallic scratching is critical.
    Conductive "CF" CarboFib Tweezers
    • Surface Resistivity 102 Ohms/sq.
    • Temperature Resistant 130°C (Continuous Use) -190°C (Short Time)
    Conductive "CP" PEEK Tweezers
    • Surface Resistivity 103-105 Ohms/sq.
    • High Heat Capability – 260°C (Continuous Use) – 300°C (Short Time)
    • Acetone / IPA resistant
    "CF" carbofib and "CP" PEEK tweezers are popular in standard ESD and general electronics assembly and lab applications.  The "CP" PEEK tweezers offer a higher temperature tolerance and are compatible with a wide range of acids and solvents. Tweezer Materials Selection Guide ESD Glossary of Terms
  • Ceramic Tip - Insulative

    Ceramic Tip - Insulative (9)

    High Precision "MZ" Insulative White Ceramic Tip Tweezers

    Ceramic Tweezers Standard Features:
    • Insulative Zirconia Ceramic Tips - "MZ"
    • Surface Resistivity - 1 x 1012 Ohms/sq.
    • Extreme High-Temperature Resistance 1000°C
    • Non-Scratching
    • Stainless Anti-Magnetic Handles - "SA"
    • High Precision Fine Tip Symmetry and Balance
    • Solder and Chemical Resistant
    • Lead free
