Diamond Scribes

High Precision Diamond Scribes

super hard surface diamond scriber

TDI’s diamond scribes are specially designed for optimum scribing or marking in micro electronic applications. These applications include thin film circuits, micro circuits, small circuit boards, integrated circuit boards and also to clean or trim circuits.

All of our diamond scribes feature a natural diamond tip with a 60° angle, as well as a magnetic steel diamond base.  The manufacturing process permanently mounts the tips of these tools to the handles.  Handles made from anodized aluminum provide the highest quality.  Since they have a hexagonal shape, the tool will not roll off of your workstation.  All styles are available with straight or bent tips.

“PVH” line includes a gold anodized, lightweight aluminum pin vise handle with a knurled grip for easy non-slip handling. This pin vise tool features an anodized steel holding collet, adapter and draw bar for interchanging diamond tips.  We offer a straight and bent version tip for this tool handle.

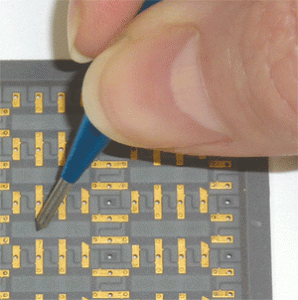

We designed the “HSDS” line  for scribing or marking super hard surfaces including silicon and alumina ceramics in electronics assembly and rework. These scribes offer a .060″ diameter diamond permanently mounted on a .300″ stainless steel shank and available with bent or straight tips. Handles are non-rolling hexagon shaped.

“MMD” micro mini line of tools have permanently mounted tips with a .020″ diameter straight or bent tip.  The non-rolling, lightweight gold anodized handle will not roll off of your workstation.

Also see our Micro Mini Tool Kit including a precision prober, scraper and scriber.

Showing all 7 results

  • #TDI PVH100 Pin Vise Tool Handle

    $34.50

    Anodized steel tool holding collet chuck, collet adapter and draw bar – non magnetic.  Collet adapter holds tips in collet chuck – opening is .070″ diameter.

    Shown with tip (sold separately).

  • #TDI PVT020S Pin Vise Diamond Scribe Tip Straight .020″

    $16.50
    Thicker Straight Diamond Scribe Tip for Pin Vise Handle
    Interchangeable
    .020″ Diameter x .060″ Tip Length
    Natural diamond tip with 60° angle
  • #TDI PVT010B Pin Vise Diamond Scribe Tip Bent .010″

    $31.50
    Bent Diamond Scribe Tip for Pin Vise Handle
    Interchangeable
    .010″ Diameter x .060″ Tip Length
    Natural diamond tip with 60° angle
  • #TDI HSDS060S Straight .060″ Diamond Scribe

    $25.50

    Standard Features:

    • Natural Diamond Tips with 60° Angle
    • Diamond Tip is Mounted to a .06″ Diameter by .30″ Long Stainless Steel Shank
    • Overall Length – 4.3″
    • Bent or Straight Permanent Tips
    • Non-Rolling Hexagon Shaped Blue Handles

    For scribing or marking of hard and super hard surfaces including silicon, fired aluminum and ceramics in electronics assembly and rework.

  • #TDI HSDS060B Bent .060″ Diamond Scribe

    $25.90

    Standard Features:

    • Natural Diamond Tips with 60° Angle
    • Diamond Tip is Mounted to a .06″ Diameter by .30″ Long Stainless Steel Shank
    • Overall Length – 4.3″
    • Bent or Straight Permanent Tips
    • Non-Rolling Hexagon Shaped Blue Handles

    For scribing or marking of hard and super hard surfaces including silicon, fired aluminum and ceramics in electronics assembly and rework.

  • #TDI MMDS020S High Precision Straight Micro Mini Diamond Scriber

    $29.25

    Diamond Tip Scribes Standard Features:

    • Natural tips with 60° angle.
    • Available in straight or bent styles
    • Reduced shank size of .020″
    • Diamond mounting .032″ diameter / .005″ tip radius.
    • Finger grip grooves for easy handling.
    • .250″ diameter anodized aluminum handle (non-magnetic).
    • Handle is non-rolling hexagon shape, to prevent the tool from rolling off your workstation.
    • Overall length 4.75″
    • For scribing or marking.
  • #TDI MMDS020B High Precision Bent Micro Mini Diamond Tip Scribe

    $31.15

    Diamond Tip Scribe Standard Features:

    • Natural diamond tips with 60° angle.
    • Available in straight or bent diamond scribe tips.
    • Reduced shank size of .020″
    • Diamond mounting .032″ diameter / .005″ diamond tip radius.
    • Finger grip grooves for easy handling.
    • .250″ diameter anodized aluminum handle (non-magnetic).
    • Handle is non-rolling hexagon shape.
    • Overall length 4.75″
    • For scribing or marking.
